With the adoption of SAS^© Viya^™, processing acceleration in Cloud Analytic Services (CAS) is becoming the norm. However, for seasoned SAS^© programmers accustomed to the Macro language, the interaction between traditional SAS^© code, the Macro language, and CASL (the native language of CAS) can seem intimidating

This article demystifies these interactions and explores how to use CASL variables for dynamic, data-driven programming, which is often more efficient than traditional macros.

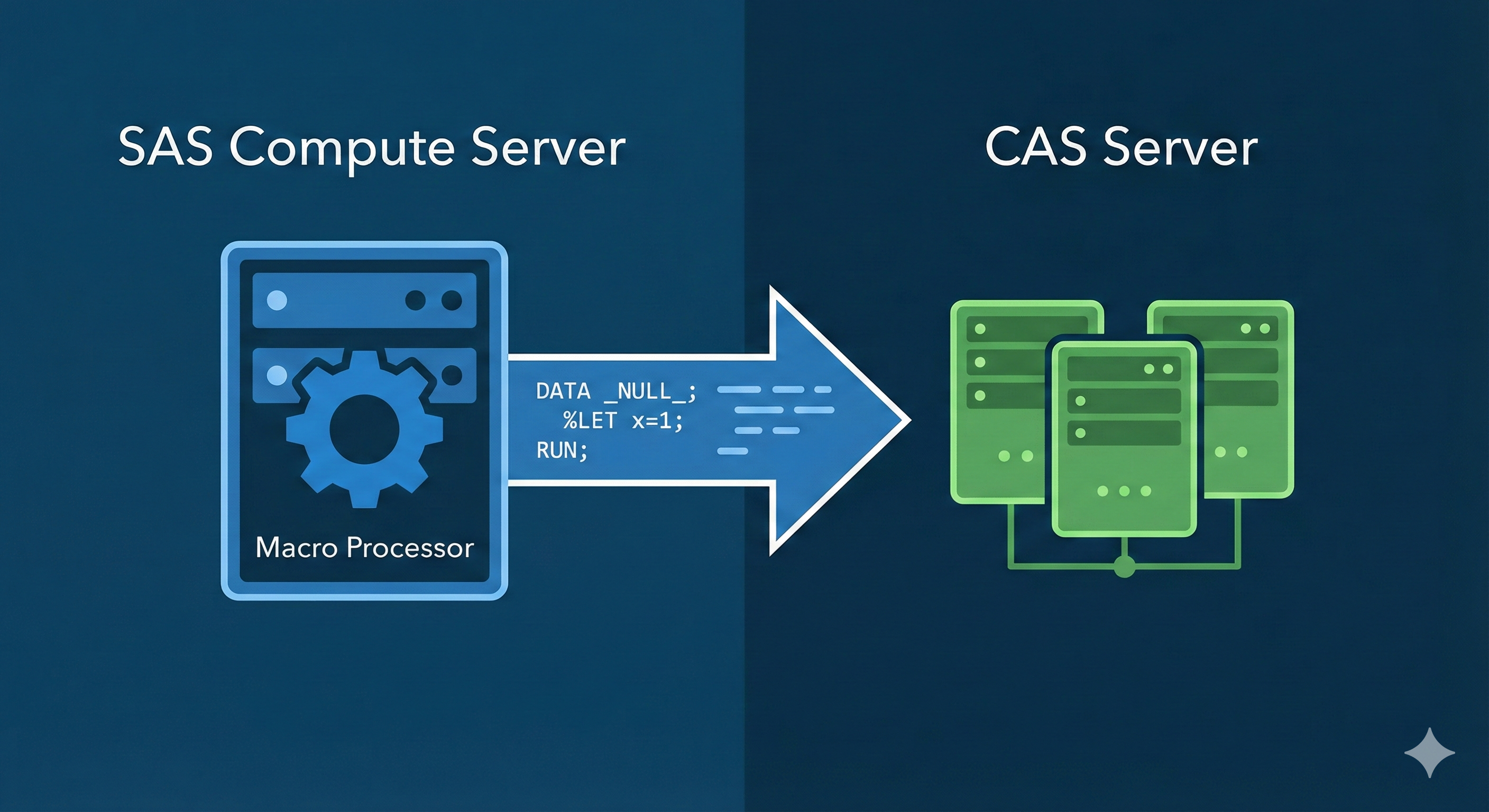

1. Understanding the Architecture: Where Does Your Code Run?

It is crucial to understand that the macro processor lives only on the SAS^© Compute Server. CAS does not have a macro processor

When you submit code:

The Compute Server's "Word Scanner" analyzes the code.
The macro processor resolves all macro references (variables & and logic %).
The resulting code (properly cleaned) is sent to CAS for execution via the LIBNAME engine (Implicit Pass-Through) or via PROC CAS.

Table 1: Compute Server vs. CAS Server

Characteristic	SAS^© Compute Server	CAS Server (Cloud Analytic Services)
Role	Orchestration, SAS^© compilation, Macro execution.	Massively parallel execution, in-memory processing.
Native Language	SAS^© (DATA Step, PROC SQL), Macro.	CASL (CAS Language).
Macro Management	YES. Resolves macros before execution.	NO. Receives only the resolved code (plain text).
Data Access	SAS^©/ACCESS engines (to Oracle, SQL, etc.).	Pre-loaded tables in distributed memory.

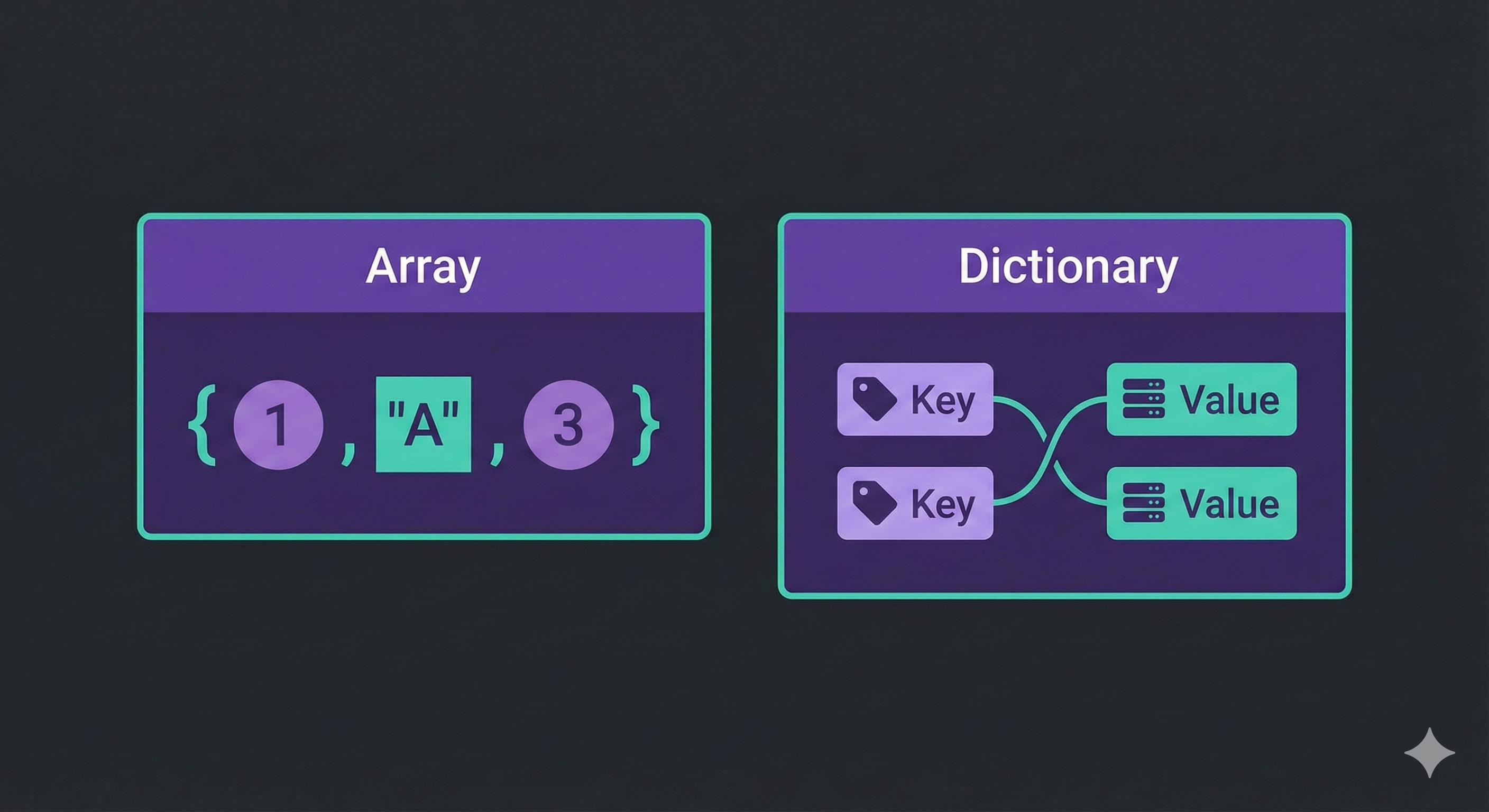

2. CASL Variables: More Powerful Than Macro Variables

Unlike macro variables, which are just text, CASL uses dynamically typed variables (the type is defined upon assignment)⁵. The true power of CASL lies in its composite data types.

Table 2: CASL Data Types

Data Type	Description	Example
Double / Int64	Numbers (floating-point or exact integers).	`x = 3;` or `y = 10.5;`
String	Character string (UTF-8).	`name = "Mark";` ⁷
Array	Ordered list of values, accessible by position. Delimited by `{}`.	`x = {10, "Mark", "555-1212"};`
Dictionary	Unordered list of key-value pairs.	`emp = {id=10, name="Mark"};`
Result Table	Two-dimensional structure (rows/columns), often the result of a CAS Action.	Resembles an array of dictionaries.

Important Note: Arrays in CASL start at index 1 (like in SAS^©), but use curly braces {} for definition and can contain mixed data types

3. Data-Driven Programming: The DO OVER Loop

The modern and high-performance equivalent of macro loops (%DO %WHILE or loops on call execute) is the DO OVER loop in CASL. It allows for easy iteration over arrays, dictionaries, or result tables.

DO OVER Loop Syntax

For a Dictionary: DO , OVER ;
For an Array: DO OVER ;
For a Table: You iterate over the rows as if it were an array.

Table 3: Macro vs. CASL Comparison for Data-Driven Programming

Criterion	Traditional SAS^© Macro Approach	CASL Approach (Data-Driven)
Mechanism	Generation of repetitive SAS^©/SQL code via `call execute` or `%do`.	Native iteration over in-memory objects (lists, results).
Complexity	High. Requires managing quotes, resolutions (`&&var&i`) and timing.	Low. Clean and direct syntax (`DO ... OVER`).
Performance	Slower (text generation + repeated compilation).	Fast (direct execution in CAS without re-parsing).
Flexibility	Limited to character strings.	Manipulates numbers, strings, and complex structures.

4. User-Defined Functions (UDFs)

Instead of writing a macro (%macro myTask; ... %mend;), you can create your own functions in CASL.

Advantage: The code is more concise and does not require the CAS engine to generate CASL code with each call, which is more efficient.
Persistence: By default, a CASL function only lasts for the duration of the PROC CAS procedure. To reuse them, you must save the code in a .sas^© file and load it with readpath() and execute() at the beginning of your session.

Example of UDF logic: You can create a loadAllFiles(caslib) function that retrieves the list of files from a caslib and loops over them to automatically load them into memory, thus replacing dozens of lines of complex macro code.

Mastering the interaction between SAS^© Macro and CASL is the key to becoming a "SAS^© Jedi" on Viya^™. While macros still handle code generation on the compute server, CASL takes over to manipulate data and complex logic directly in the in-memory engine, offering speed and code elegance.
